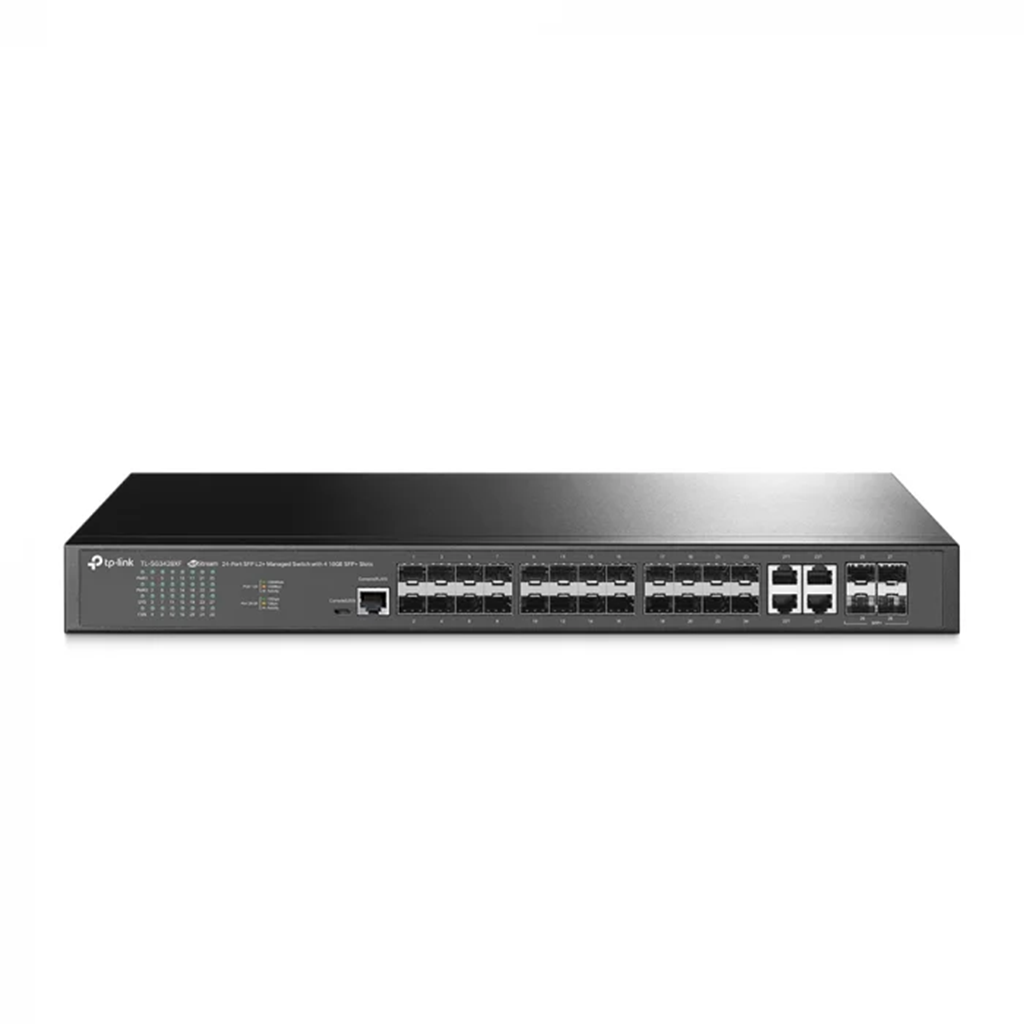

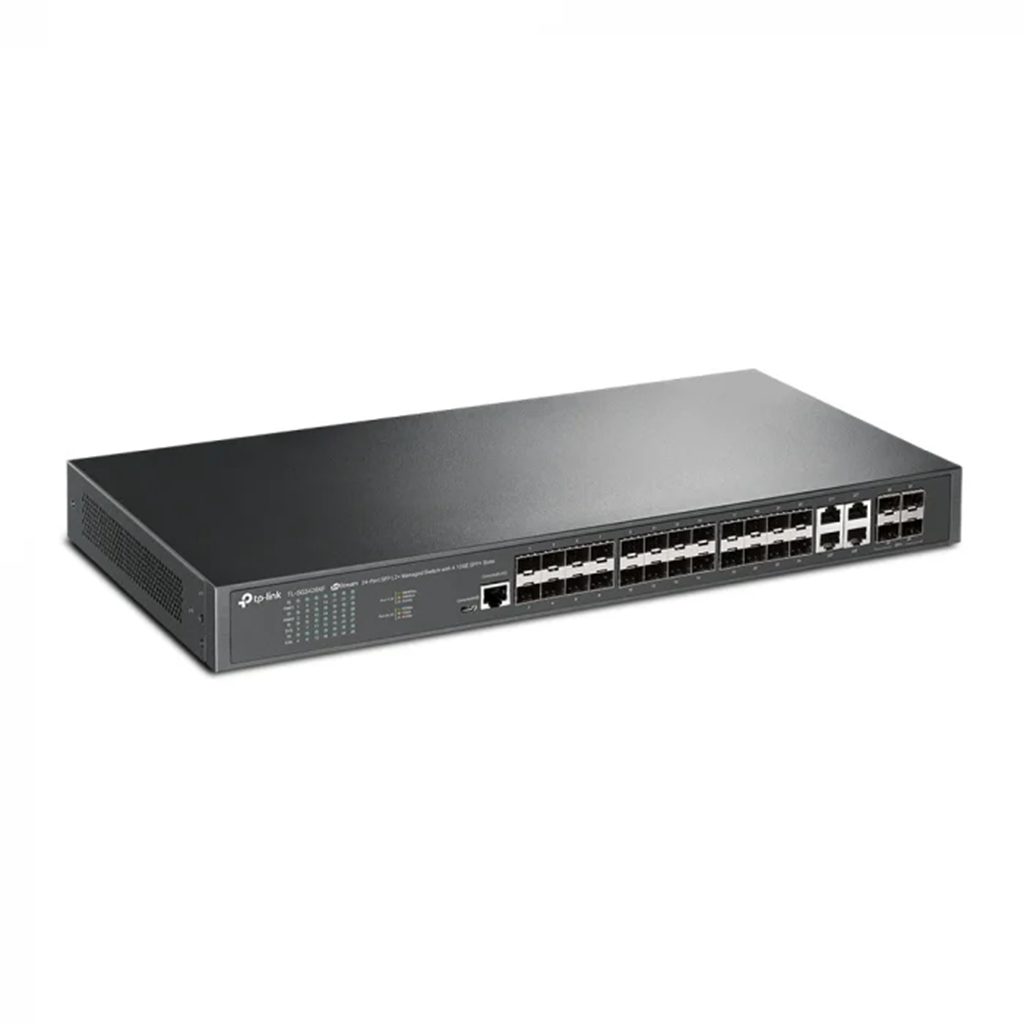

Switch JetStream cu management | 24× Porturi SFP L2+ și 4× Sloturi 10GE SFP+
- 10G Uplink rapid—Porturile 10 Gbps SFP+ permit conectivitate high-bandwidth și non-blocking switching capacity.
- Porturi Gigabit Fiber—Cele 20× porturi SFP Gigabit și cele 4× Porturi Combo SFP/RJ45 Gigabit oferă conexiuni rapide și stabile către alte switch-uri și echipamente.
- Integrat în Omada SDN—Zero-Touch Provisioning (ZTP)*, Management Centralizat via Cloud și Monitorizare Inteligentă.
- Management centralizat via Cloud—Acces via Cloud și aplicația Omada pentru o administrare ușoară și de la distanță.
- Static Routing—Ajută la redirecționarea traficului intern pentru o utilizare mai eficientă a resurselor rețelei.
- Strategii robuste de securitate—IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication și altele.
- Optimizare pentru aplicațiile de Voce și Video—L2/L3/L4 QoS și IGMP snooping.
- Management Standalone—Web, CLI (Console Port, Telnet, SSH), SNMP, RMON și Dual Image.
- 5 ani garanție și suport pre și post vânzare
| CARACTERISTICI HARDWARE | |
|---|---|
| Interfață | • 20× Porturi SFP Gigabit • 4× Porturi Combo SFP/RJ45 Gigabit • 4× Sloturi 10G SFP+ • 1× Porturi RJ45 pe consolă • 1× Porturi Micro-USB pe consolă |
| Număr ventilatoare | 1× Ventilator |

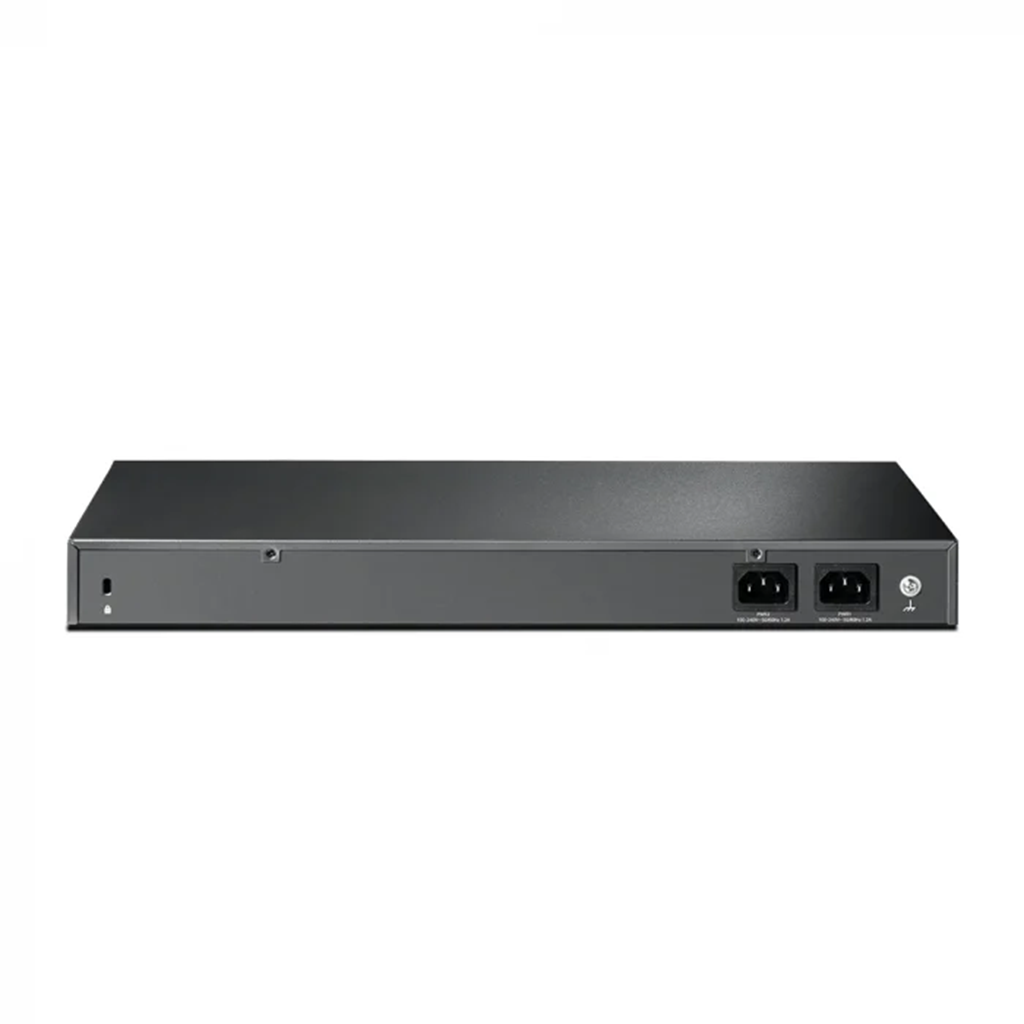

| Alimentator | Surse de alimetare duale, pentru redundanță 100-240 V AC~50/60 Hz |
| Dimensiuni (L x l x H) | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 inch) |
| Montare | Montare în rack |
| Consum maxim | 35.7 W (110 V/60 Hz) |
| Max Heat Dissipation | 121.81 BTU/hr (110 V/60 Hz) |
| PERFORMANȚĂ | |
|---|---|
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| Tabelă Adrese MAC | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| CARACTERISTICI SOFTWARE | |
|---|---|
| Calitatea Serviciului | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Caracteristici L2 și L2+ | • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Listă Control Acces | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Securitate | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Caracteristici L3 | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay |
| Caracteristici Avansate | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
|---|---|
| Omada App | Da (Prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller) |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Da (Prin OC300, OC200, Omada Cloud-Based Controller sau Omada Software Controller) |
| Zero-Touch Provisioning | Da. Necesită utilizarea Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| ALTELE | |
|---|---|
| Certificări | CE, FCC, RoHS |
| Conținut Pachet | • Switch TL-SG3428XF • Cablu de alimentare • Ghid de instalare rapidă • Kit de montare în rack • Picioare de cauciuc |
| Cerințe de sistem | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ sau Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® sau Linux. |
| Mediu | • Temperatură de operare: 0–45 ℃ (32–113 ℉); • Temperatură de depozitare: -40–70 ℃ (-40–158 ℉) • Umiditate mediu operare: 10–90% RH fără condens • Umiditate mediu depozitare: 5–90% RH fără condens |
