| CARACTERISTICI HARDWARE | |
|---|---|
| Standarde și Protocoale | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interfață | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Rețea media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Număr ventilatoare | Fanless |
| Alimentator | External Power Adapter(Output: 9VDC/0.6A) |
| Dimensiuni (L x l x H) | 6.2*4.0*1.0 in. (158*101*25 mm) |
| Consum maxim | 3.55W(220V/50Hz) |
| Max Heat Dissipation | 12.12BTU/h |
| PERFORMANȚĂ | |
|---|---|
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Tabelă Adrese MAC | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
| CARACTERISTICI SOFTWARE | |
|---|---|
| Calitatea Serviciului | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| Caracteristici L2 | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Metodă de Transmisie | Store-And-Forward |
| ALTELE | |
|---|---|
| Certificări | FCC, CE, RoHS |

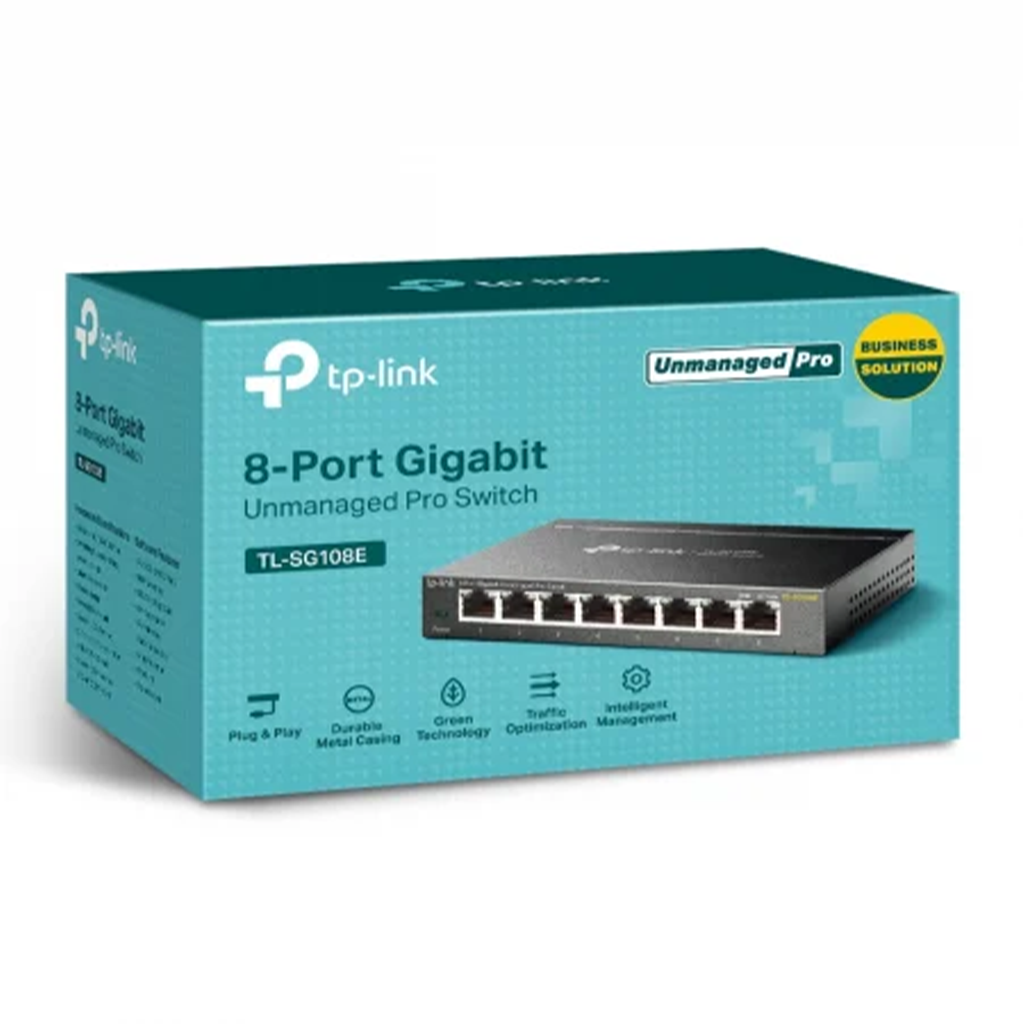

| Conținut Pachet | TL-SG108E Power Adapter Installation Guide Rubber Feet |
| Cerințe de sistem | Microsoft® Windows® for running Utility |
| Mediu | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
