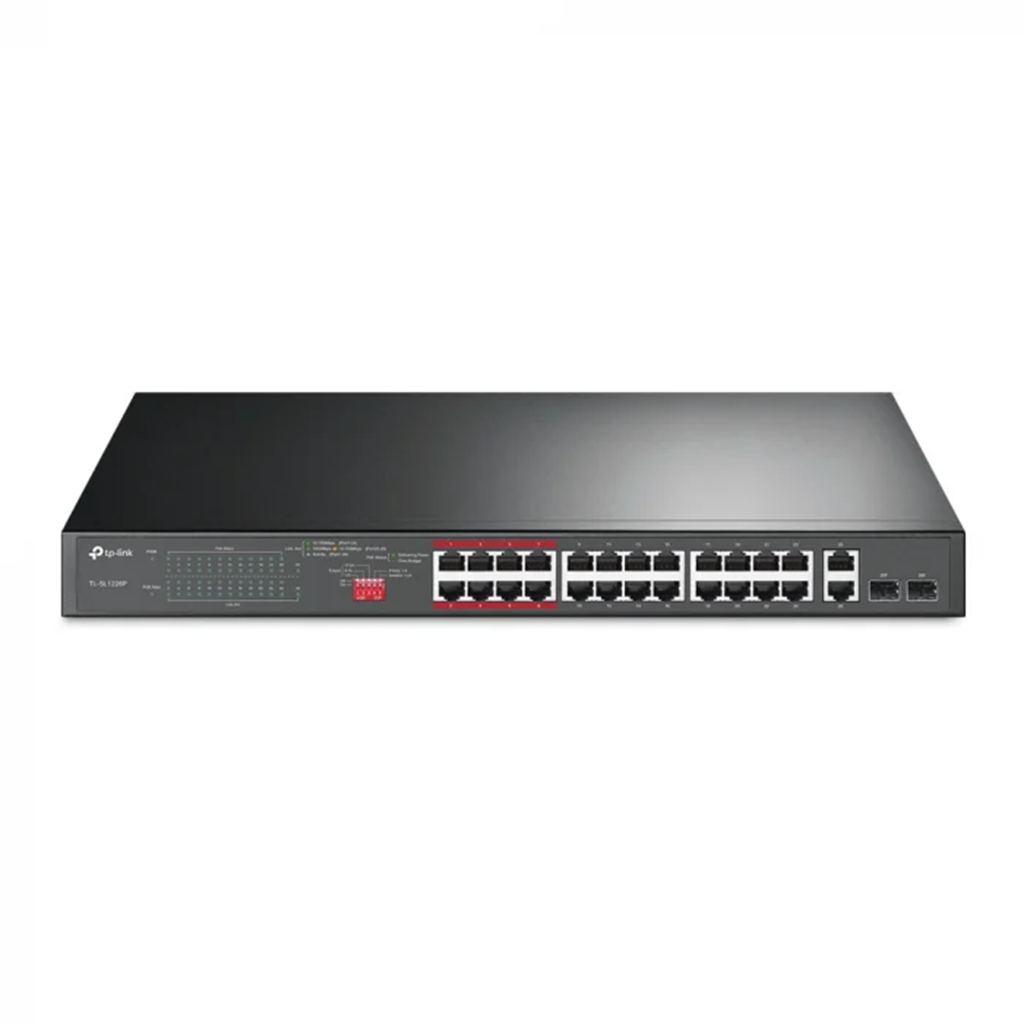

Switch fara management TP-Link Omada TL-SL1226P, 24 de porturi, POE
Preț obișnuit
1.217,17 lei
TL-SL1226P
Adding product to your cart
| CARACTERISTICI HARDWARE |
| Interfață |
- 24× PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 2× Combo Gigabit SFP Slots
|
| Rețea media |
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
|
| Număr ventilatoare |
2 Fans |
| Physical Security Lock |
Yes |
| Alimentator |
100-240 VAC, 50/60 Hz |
| Packet Forwarding Rate |
6.5472 Mpps |
| Porturi (RJ45) PoE+ |
- Standard: 802.3at/802.3af compliant
- PoE Ports: Port 1 – Port 24

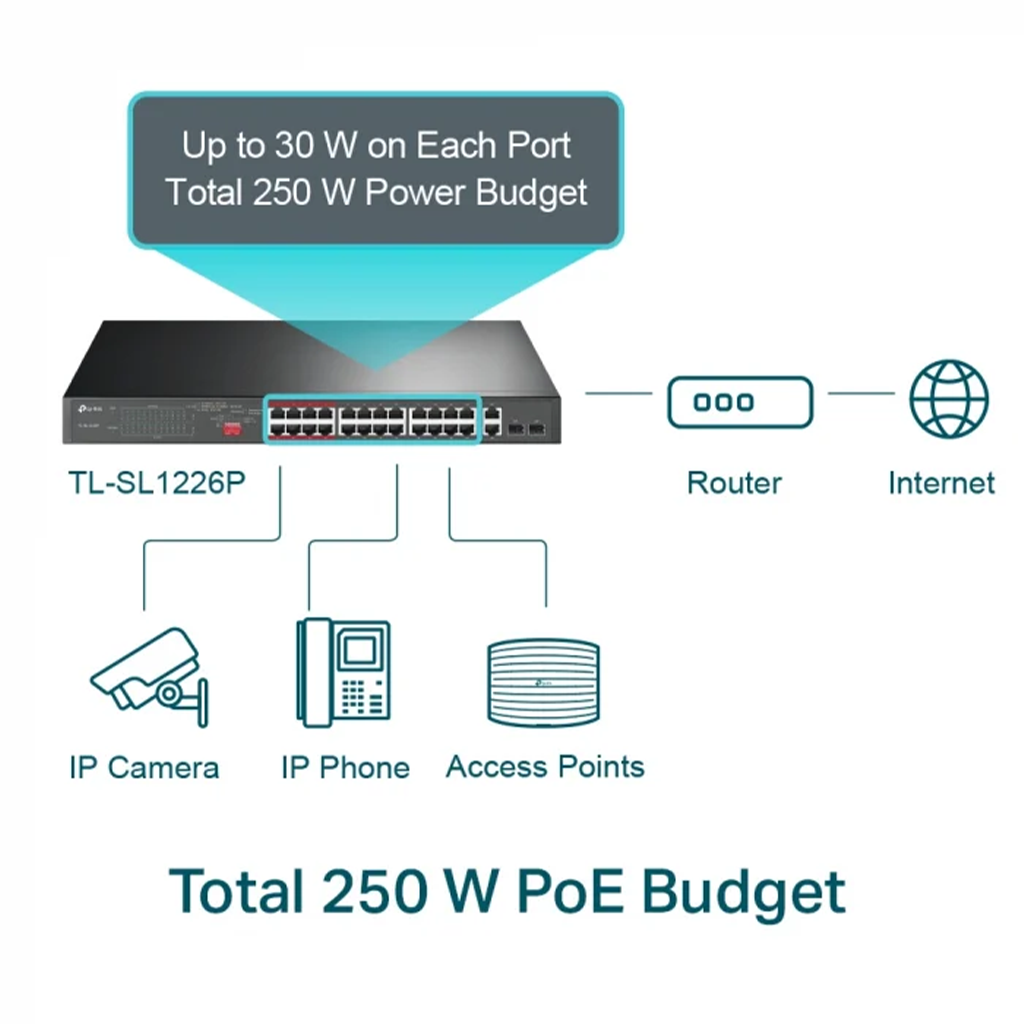

- PoE Power Budget: 250 W
|
| Tabelă de Adrese MAC |
8 K |
| Jumbo Frame |
10 KB |
| Capacitate switching |
8.8 Gbps |
| Dimensiuni (L x l x H) |
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Consum maxim |
18.32 W (220/50 Hz. no PD connected)
294 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation |
62.47 BTU/h (no PD connected)
1002.54 BTU/h (with 250 W PD connected) |
| CARACTERISTICI SOFTWARE |
| Caracteristici Avansate |
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)

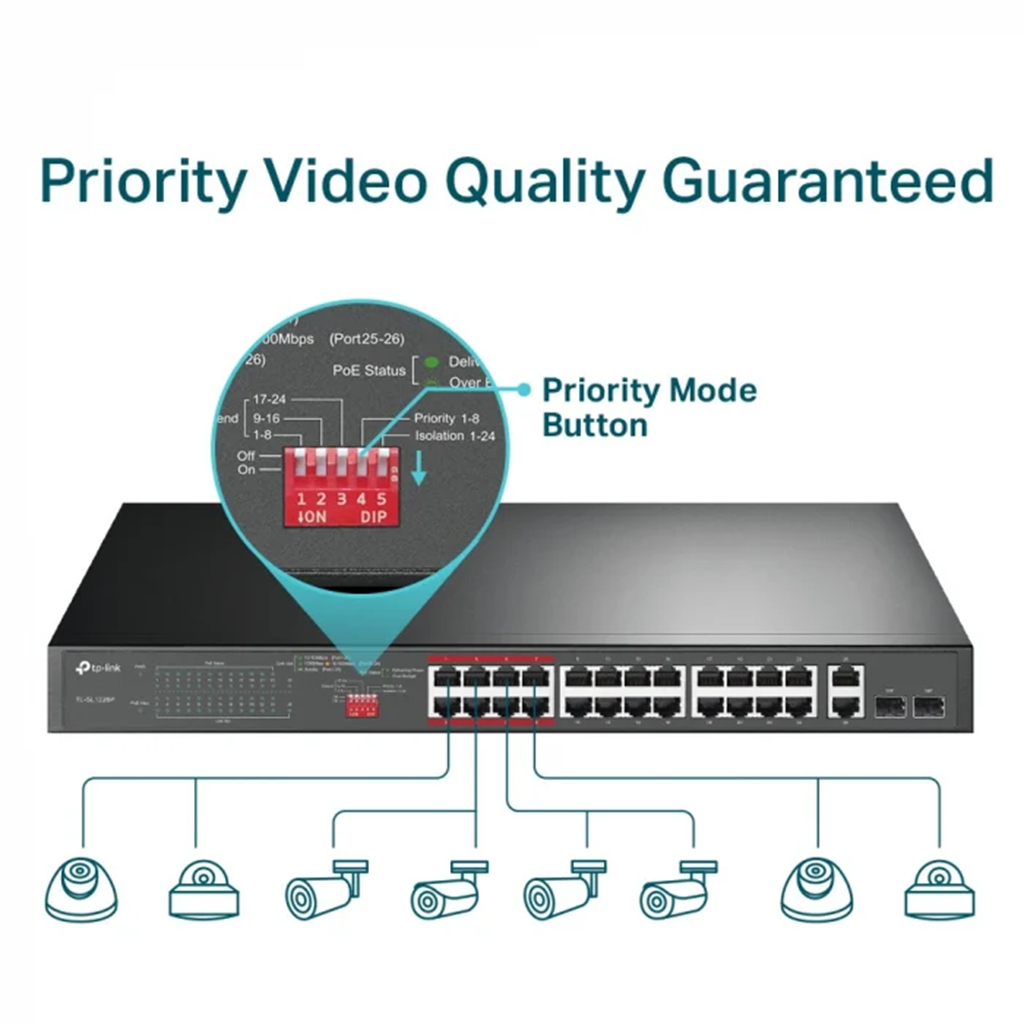

- Priority Mode
- Isolation Mode
- PD Detection
- Intelligent Power Supply
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control
|
| Metodă de Transmisie |
Store-And-Forward |
| ALTELE |
| Certificări |
CE, FCC, RoHS |
| Conținut Pachet |
- TL-SL1226P
- Power Cable
- Installation Guide
- Two mounting brackets and the fittings
|
| Mediu |
- Operating Temperature: 0–50 °C (32–122 °F)
- Storage Temperature: -40–70 °C (-40–158 °F)
- Operating Humidity: 10–90% non-condensing
- Storage Humidity: 5–90% non-condensing
|
