| CARACTERISTICI HARDWARE | |
|---|---|
| Interfață | • 16 PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots |
| Rețea media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Număr ventilatoare | 2 Fans |
| Physical Security Lock | Yes |
| Alimentator | 100–240V AC, 50/60 Hz |

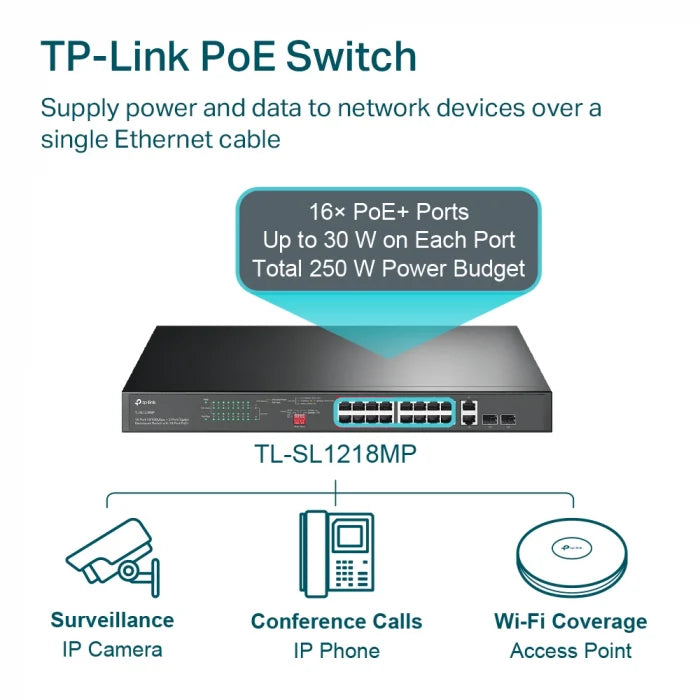

| Porturi (RJ45) PoE+ | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Dimensiuni (L x l x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Consum maxim | • 14.97 W (220/50Hz. no PD connected) • 285.8 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 51.05 BTU/h (no PD connected) • 974.58 BTU/h (with 250 W PD connected) |
| PERFORMANȚĂ | |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Tabelă Adrese MAC | 8K |
| Jumbo Frame | 10 KB |
| CARACTERISTICI SOFTWARE | |
|---|---|

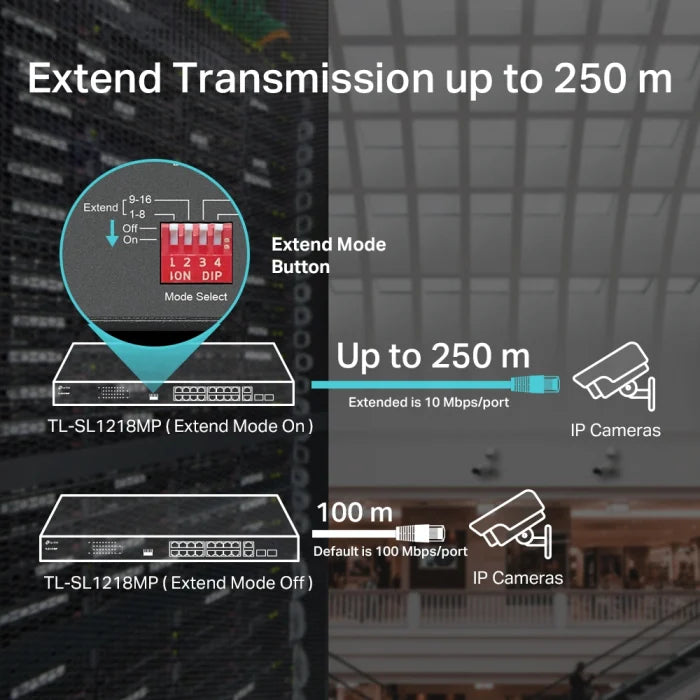

| Caracteristici Avansate | • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Metodă de Transmisie | Store-And-Forward |
| ALTELE | |
|---|---|
| Certificări | CE, FCC, RoHS |
| Conținut Pachet | • TL-SL1218MP • Power Cable • Installation Guide • Two mounting brackets and the fittings |
| Mediu | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
