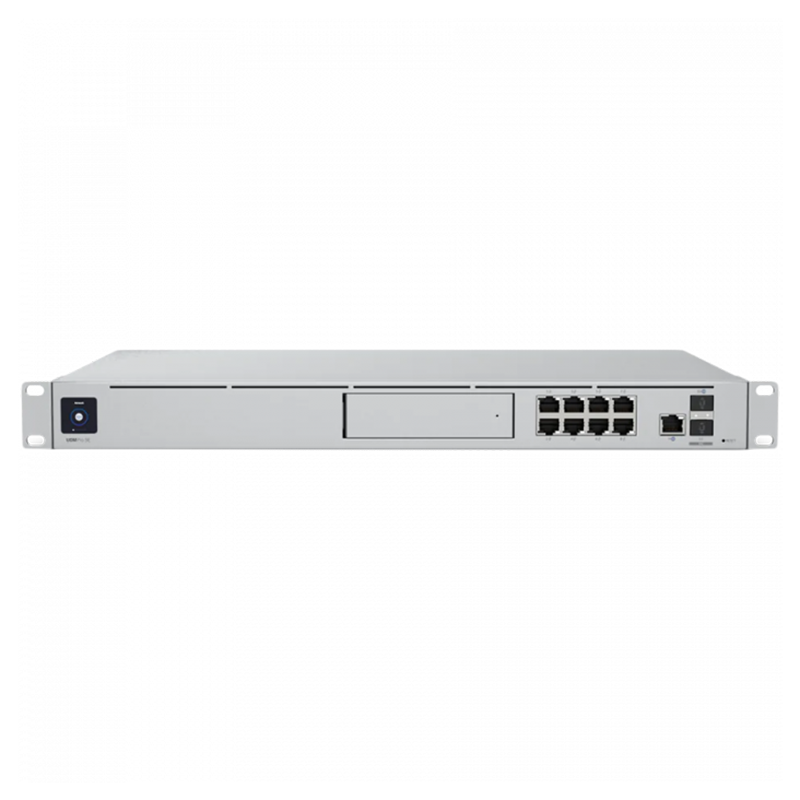

Ubiquiti UniFi Dream Machine Special Edition Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz System memory 4 GB DDR4 On-board storage 16 GB eMMC Integrated 128 GB SSD IDS/IPS throughput 3.5 Gbps Max. power consumption (excluding PoE output) 50W Power supply AC/DC, Internal, 240W Supported voltage range 100 to 240VAC Management interfaces Ethernet Bluetooth Networking interfaces WAN: 2.5 GbE RJ45 port LAN: 1 GbE RJ45 ports SFP+ interfaces WAN: 10G SFP+ LAN: 10G SFP+ PoE interfaces PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-) Max. PoE wattage per port by PSE 802.3af 15.4W Max. PoE wattage per port by PSE 802.3at 30W Voltage range 802.3af mode 44 to 57V Voltage range 802.3at mode 50 to 57V LCM display 1.3" touchscreen Operating temperature -10 to 40° C (14 to 104° F) Certifications CE, FCC, IC
