| CARACTERISTICI HARDWARE | |
|---|---|
| Interfață | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Rețea media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Număr ventilatoare | 1 |
| Physical Security Lock | No |

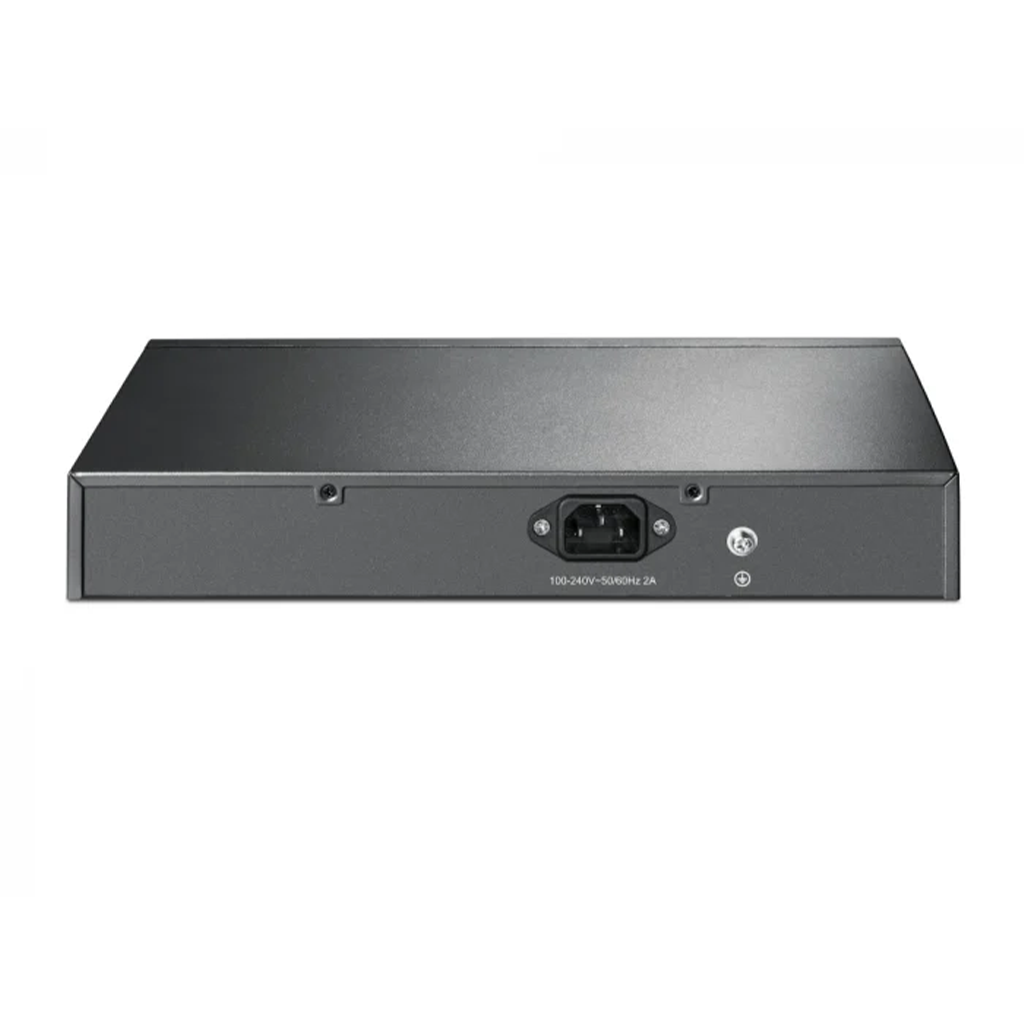

| Alimentator | 100-240VAC, 50/60Hz |
| Porturi (RJ45) PoE+ | Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 126W |
| Backbound Bandwidth | 16Gbps |
| Tabelă de Adrese MAC | 4K |
| Dimensiune buffer | 1.5Mbits |
| Dimensiuni (L x l x H) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Montare | Rack Mountable |
| Consum maxim | 9.89W(220V/50Hz. no PD connected) 140.67W(110V/60Hz. with 126W PD connected) |
| Max Heat Dissipation | 33.74BTU/h(no PD connected) 492.56BTU/h(with 126W PD connected) |
| CARACTERISTICI SOFTWARE | |
|---|---|
| Caracteristici Avansate | Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Metodă de Transfer | Store-And-Forward |
| ALTELE | |
|---|---|
| Certificări | FCC, CE, RoHS |

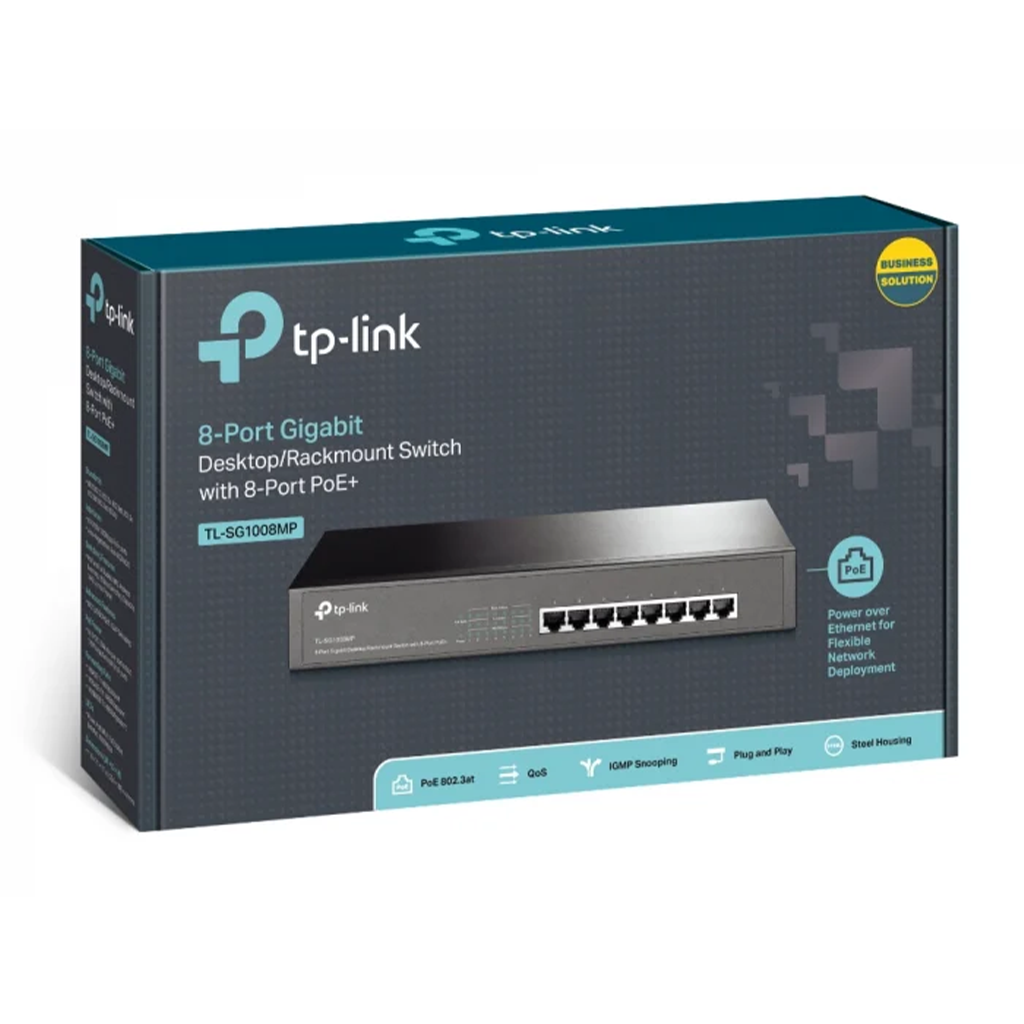

| Conținut Pachet | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Mediu | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
