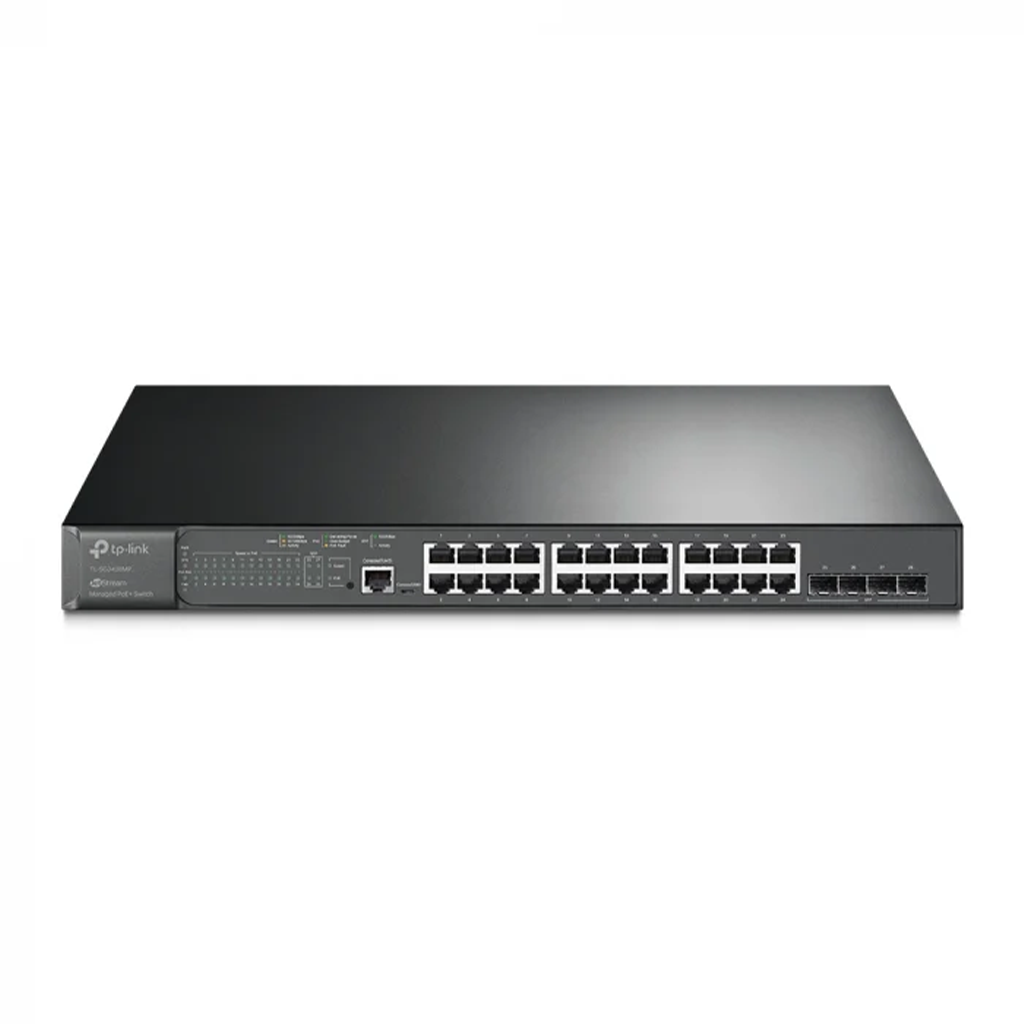

Switch cu management | 28×Porturi Gigabit L2 și 24× Porturi PoE+
-

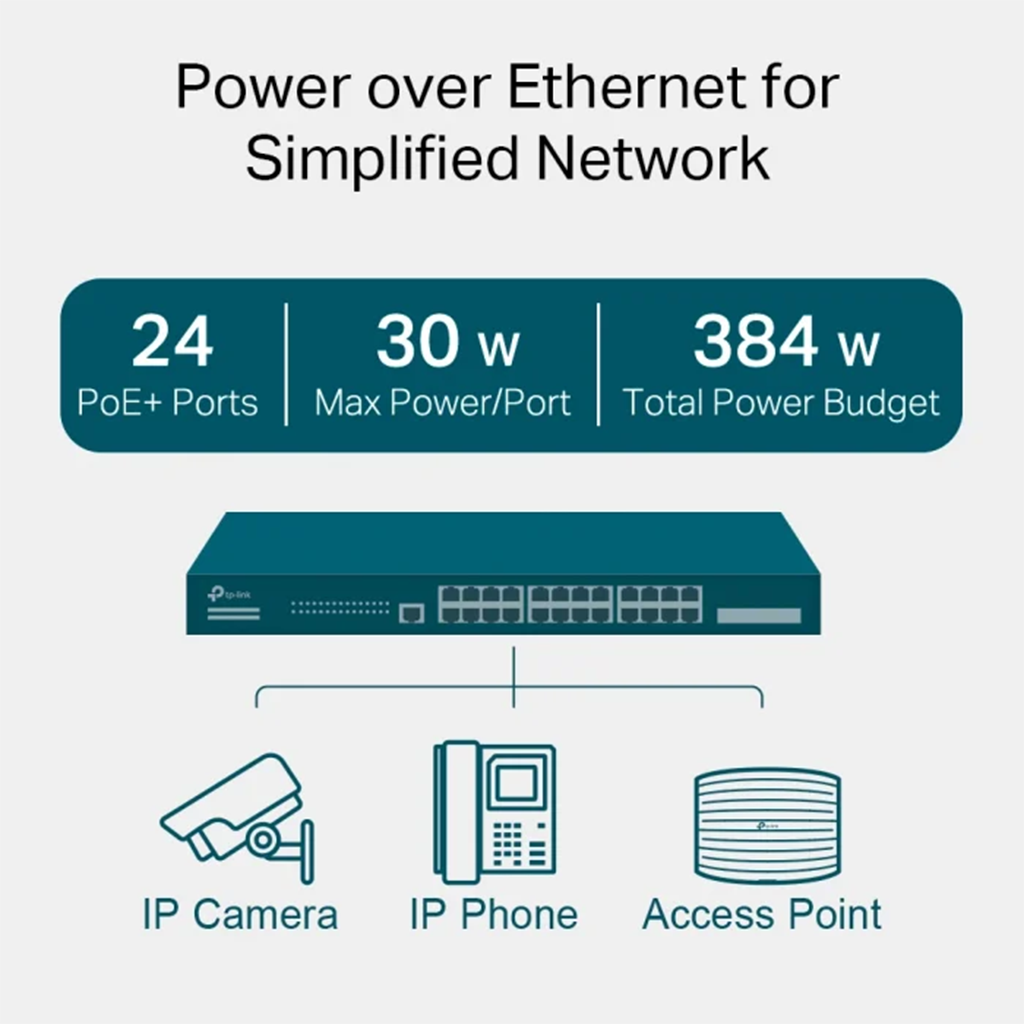

384 W PoE Budget: 24× Porturi PoE+ compatibile 802.3at/af cu o putere totală de 384 W*
-
Porturi Gigabit: 24× Porturi Gigabit RJ45 și 4× Sloturi Gigabit SFP oferă suficiente conexiuni de mare viteză
-

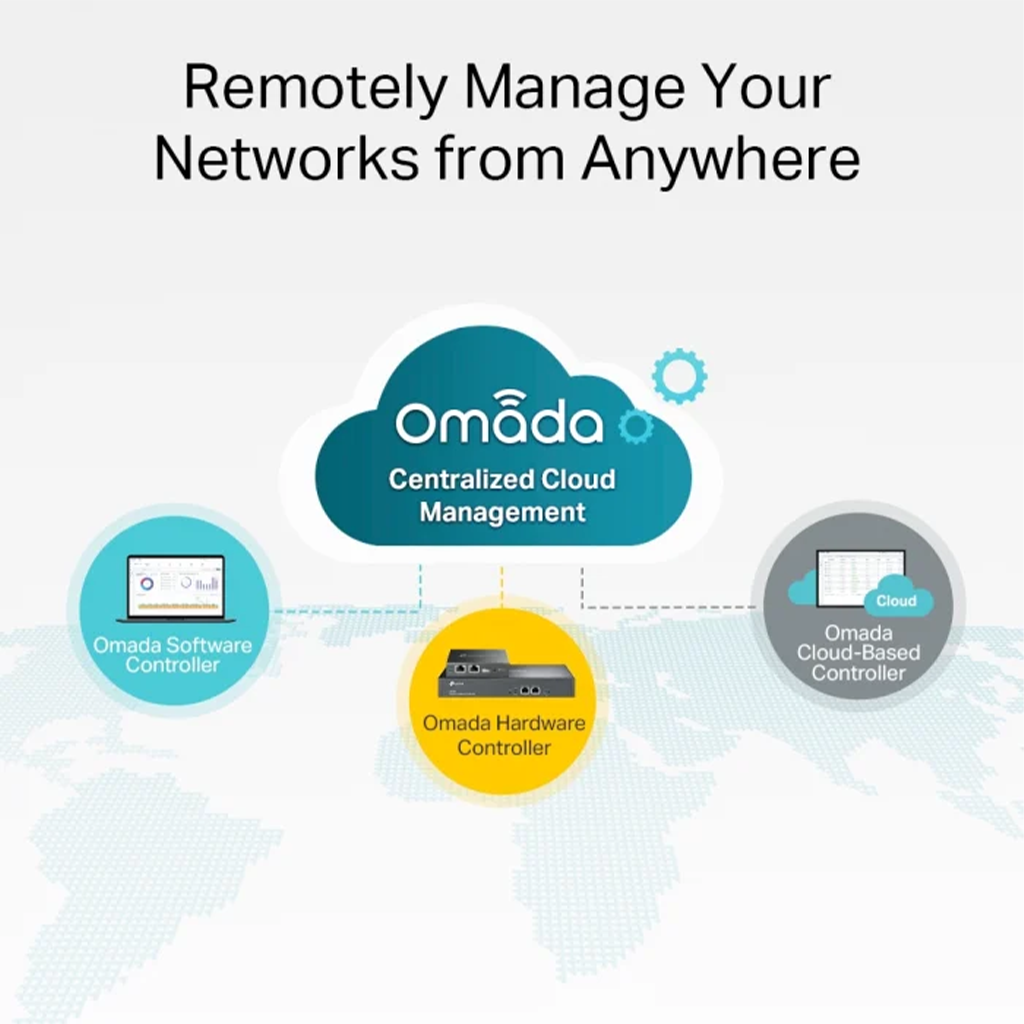

Integrat în Omada SDN: Zero-Touch Provisioning (ZTP)**, Administrare centralizată prin Cloud și Monitorizare inteligentă
-
Management centralizat: Accesul prin Cloud și aplicația Omada oferă o administrare ușoară și convenabilă
-
Static Routing: Ajută la ghidarea traficului intern pentru o utilizare mai eficientă a resurselor rețelei
-
Strategii robuste de securitate: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication și altele
-
Optimizare pentru aplicațiile de Voce și Video: L2/L3/L4 QoS și IGMP snooping
-
Management Standalone: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON și Dual Image oferă capacități puternice de administrare
-
5 ani garanție și suport pre și post vânzare
| CARACTERISTICI HARDWARE |

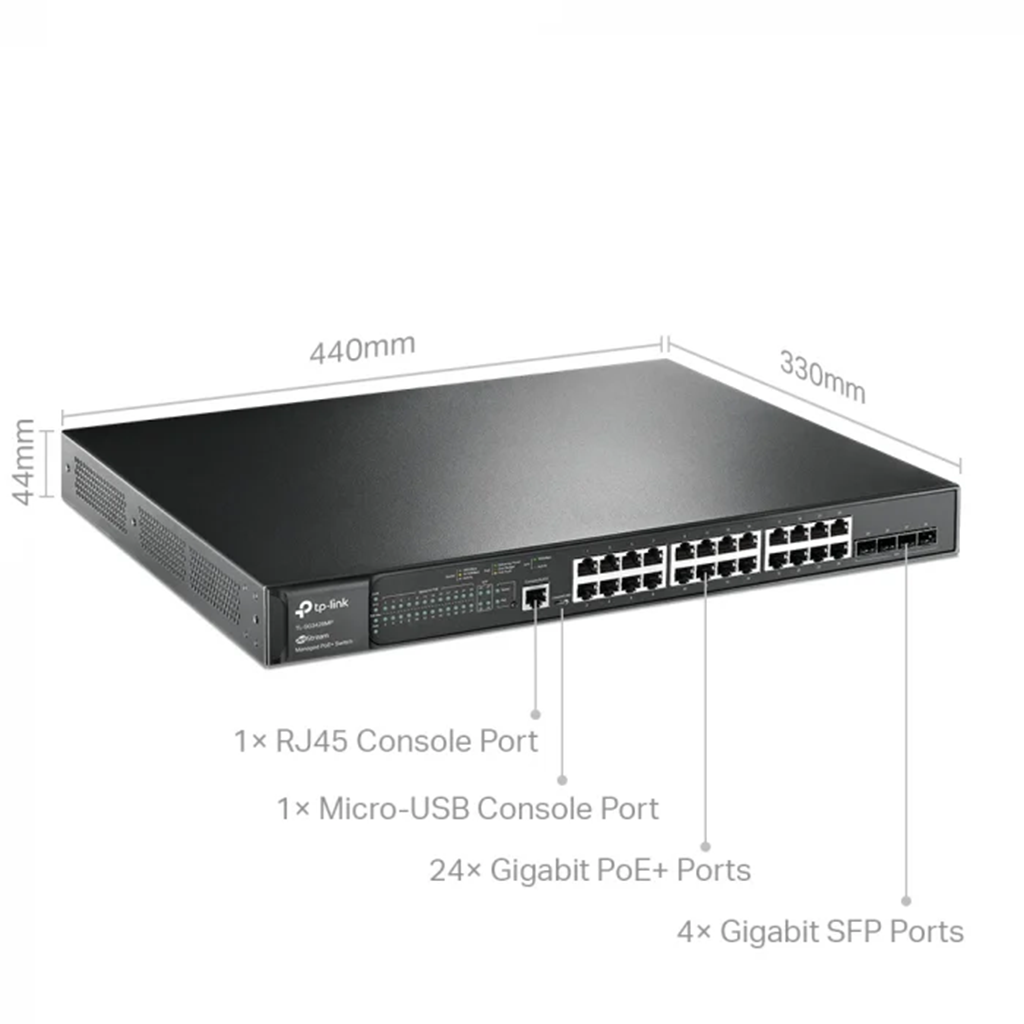

| Interfață |
• 24× Porturi RJ45 10/100/1000 Mbps
• 4× Sloturi Gigabit SFP
• 1× Port RJ45 pe consolă
• 1× Port Micro-USB pe consolă |
| Număr ventilatoare |
2 |

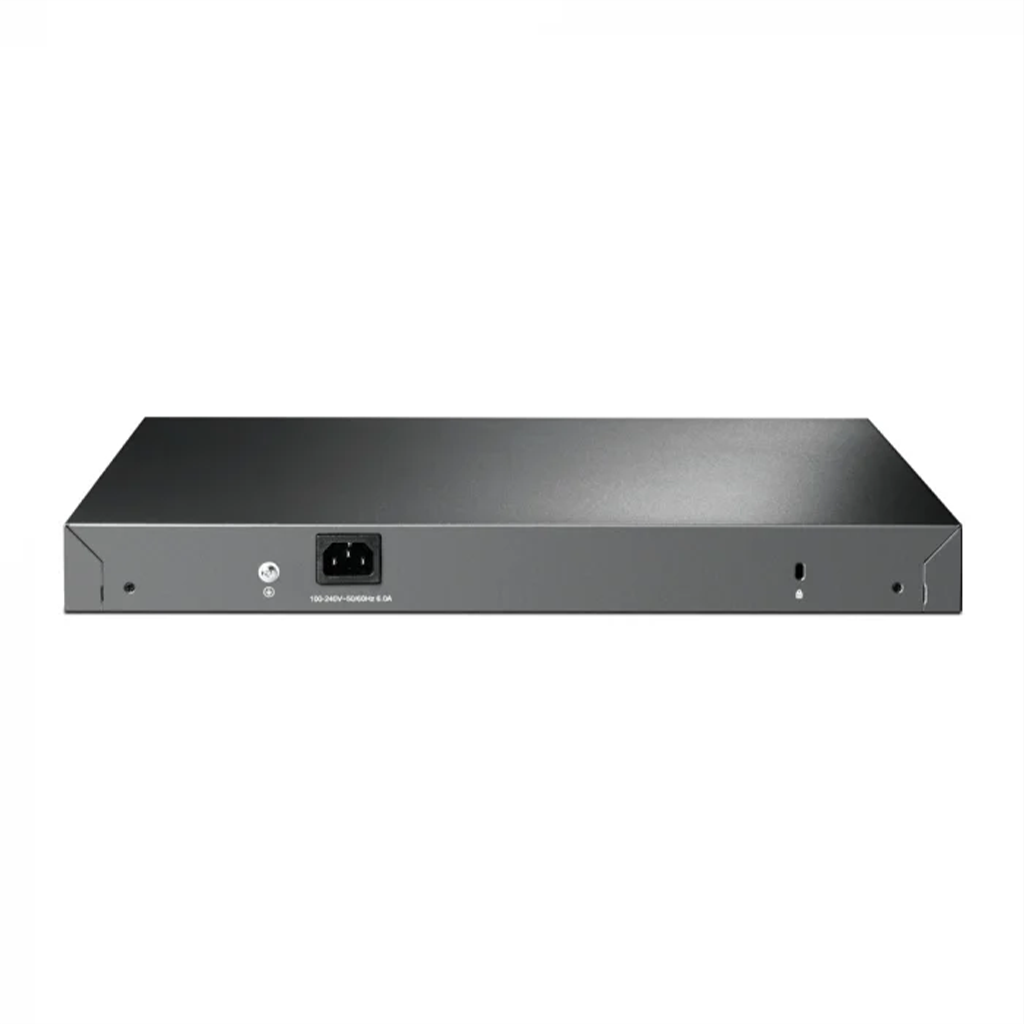

| Alimentator |
100-240 V AC~50/60 Hz |
| Porturi (RJ45) PoE |
• Standard: 802.3at/af compliant
• Porturi PoE+: 24 Porturi, până la 30 W per port
• PoE Power Budget: 384 W* |
| Dimensiuni (L x l x H) |
440 × 330 × 44 mm (17.3 × 13.0 × 1.7 inch) |
| Montare |
Montare în rack |
| Consum maxim |
• V1: 463.8 W (110 V/60 Hz) (cu PD 384 W conectat); 31.0 W (110 V/60 Hz) (fără PD conectat)
• V2: 465.8 W (110 V/60 Hz) cu PD 384 W conectat); 34.4 W (110 V/60 Hz) (fără PD conectat)
• V3: 442.1 W (220 V/50 Hz) (cu PD 384 W conectat)
• V4: 460.8 W (110 V/60 Hz) (cu PD 384 W conectat)
• V5: 456.4 W (110 V/60 Hz) (cu PD 384 W conectat) |
| Max Heat Dissipation |
• V1: 463.8 W (110 V/60 Hz) (cu PD 384 W conectat); 31.0 W (110 V/60 Hz) (fără PD conectat)
• V2: 465.8 W (110 V/60 Hz) cu PD 384 W conectat); 34.4 W (110 V/60 Hz) (fără PD conectat)
• V3: 442.1 W (220 V/50 Hz) (cu PD 384 W conectat)
• V4: 460.8 W (110 V/60 Hz) (cu PD 384 W conectat)
• V5: 456.4 W (110 V/60 Hz) (cu PD 384 W conectat) |
| PERFORMANȚĂ |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.66 Mpps |
| Tabelă Adrese MAC |
• V1: 8K
• V2 și ulterioare: 16K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| CARACTERISTICI SOFTWARE |
| Calitatea Serviciului |
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark |
| Caracteristici L2 și L2+ |
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port-based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both |
| L2 Multicast |
• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN |
• VLAN Group
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0)
• Protocol VLAN: Protocol Template 16, Protocol
VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN |
| Listă Control Acces |
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN |
| Securitate |
• IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 |
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP |
| Caracteristici L3 |
• 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
- 128 static entries
• 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
• DHCP L2 Relay |
| Caracteristici Avansate |
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule |
| MIBs |
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT |
| Omada App |
Da, prin intermediul:
• Omada Cloud-Based Controller (nu este suportat de TL-SG3428MP v3)
• OC300
• OC200
• Omada Software Controller |
| Centralized Management |
• Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Cloud Access |
Da, prin intermediul:
• Omada Cloud-Based Controller (nu este suportat de TL-SG3428MP v3)
• OC300
• OC200
• Omada Software Controller |
| Zero-Touch Provisioning |
Da. Necesită utilizarea Omada Cloud-Based Controller (suportat de TL-SG3428MP v1, v2, v4 sau mai noi, dar nu este suportat de TL-SG3428MP v3) |
| Management Features |
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log |
| ALTELE |
| Certificări |
CE, FCC, RoHS |
| Conținut Pachet |
• Switch TL-SG3428MP
• Cablu de alimentare
• Ghid de instalare rapidă
• Kit de montare în rack
• Picioare din cauciuc |
| Cerințe de sistem |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ sau Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® sau Linux. |
| Mediu |
• Temperatură de operare: 0–40 ℃ (32–104 ℉);
• Temperatură de depozitare: -40–70 ℃ (-40–158 ℉)
• Umiditate mediu operare: 10–90% RH fără condens
• Umiditate mediu depozitare: 5–90% RH fără condens |
